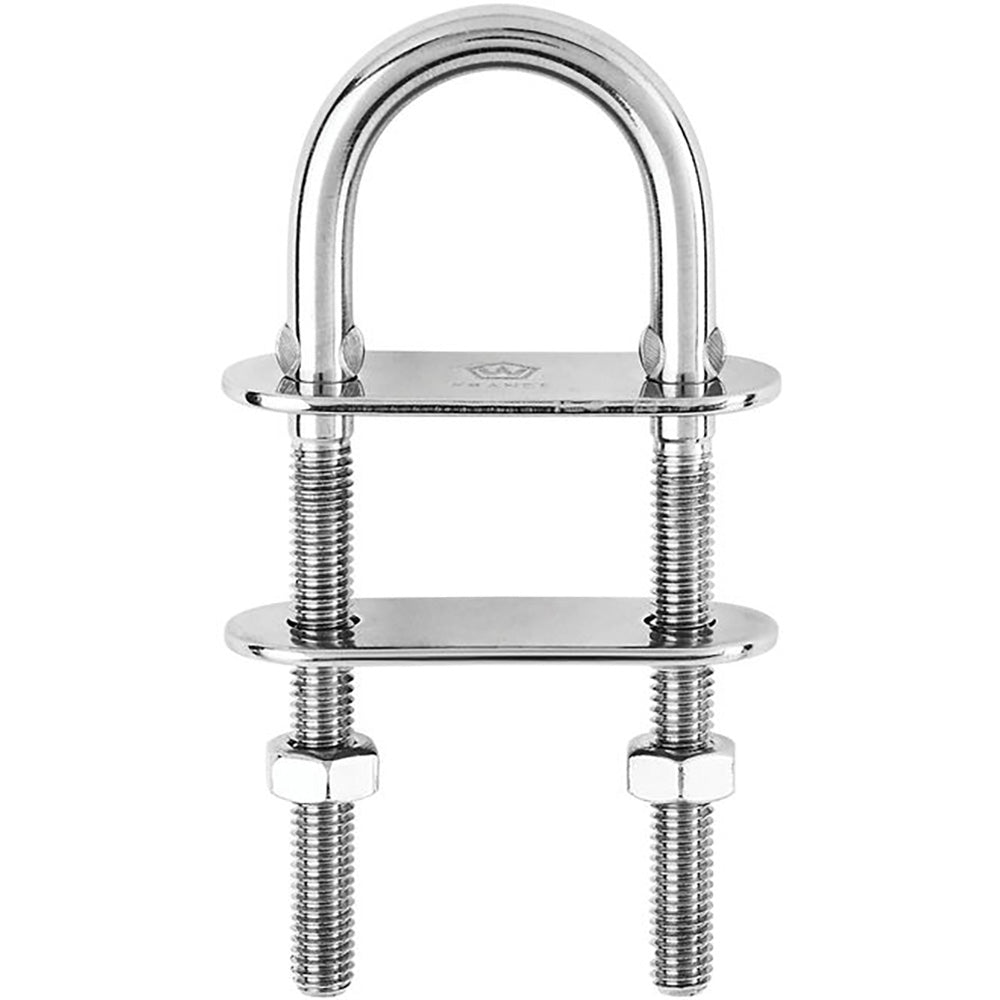

Wichard U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

U-Bolt Pad Eye - 10mm Diameter - 25/64" - 90mm Length - 3-35/64"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.441 / (g) 200

Dimensions:

• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 17/64" / (mm) 32
• C: (inch) 1 49/64" / (mm) 45
• D diameter: (inch) 25/64" / (mm) 10
• Length: (inch) 3 35/64" / (mm) 90
• Caption:
• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
