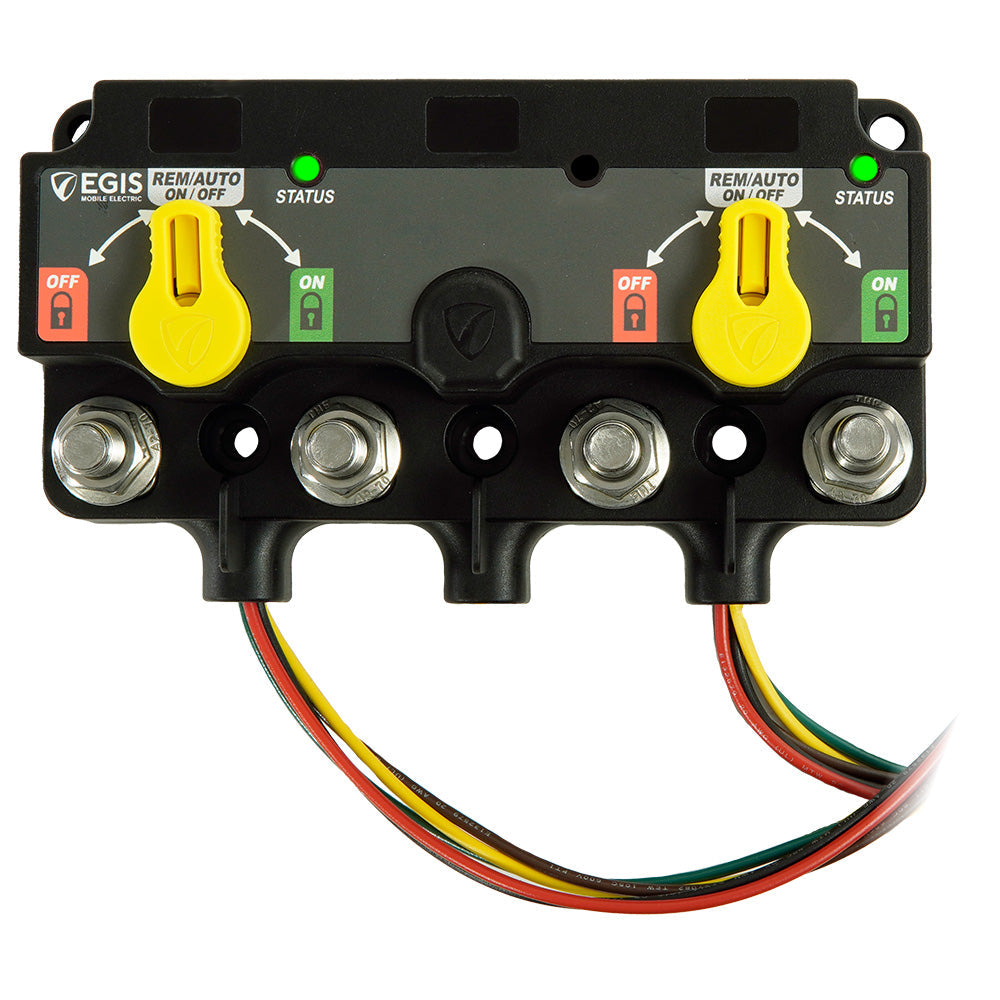

Egis XD Triple - 2 Pole XD Flex 2 - Relay/Relay w/Knobs

XD Triple - 2 Pole XD Flex 2 - Relay/Relay with Knobs

Features:

• Up to 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Meets Aluminum Hull and US Coast Guard Safety Requirements For Isolated Switching of Both Positive and Ground Leads.
• Multiple Voltage Capability For Multi Voltage/ Multi Battery Chemistry Battery Applications With 12 & 24V Switching Capability in One Device.
• Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
• LED Indicator Provides Helpful Diagnostics
• Flexible Functionality via Dip Switches: Low Voltage OFF Set-Point, Delay Off Time, and Voltage Differential for Warning Signal

Specifications:

• Type: Electric
• Box Dimensions: 3"H x 6"W x 8"L WT: 2.25 lbs
• UPC: 850053879500
